    HT118D Habotest 1000V Handheld Digital Multimeter

    Ask Lasest Price
    Brand Name : Habotest
    Model Number : HT118D
    Price : $16.40
    Certification : CE, Rohs , EMC
    • Product Details
    • Company Profile

    HT118D Habotest 1000V Handheld Digital Multimeter

    Habotest HT118D 6000 Counts Digital Multimeter With True RMS with Battery Test 10A 1000V

    Product Description

    6000 Counts

    AC/DC Votlage

    AC/DC Current

    Resitance:600Ω/6KΩ/600kΩ/6MΩ/60MΩ

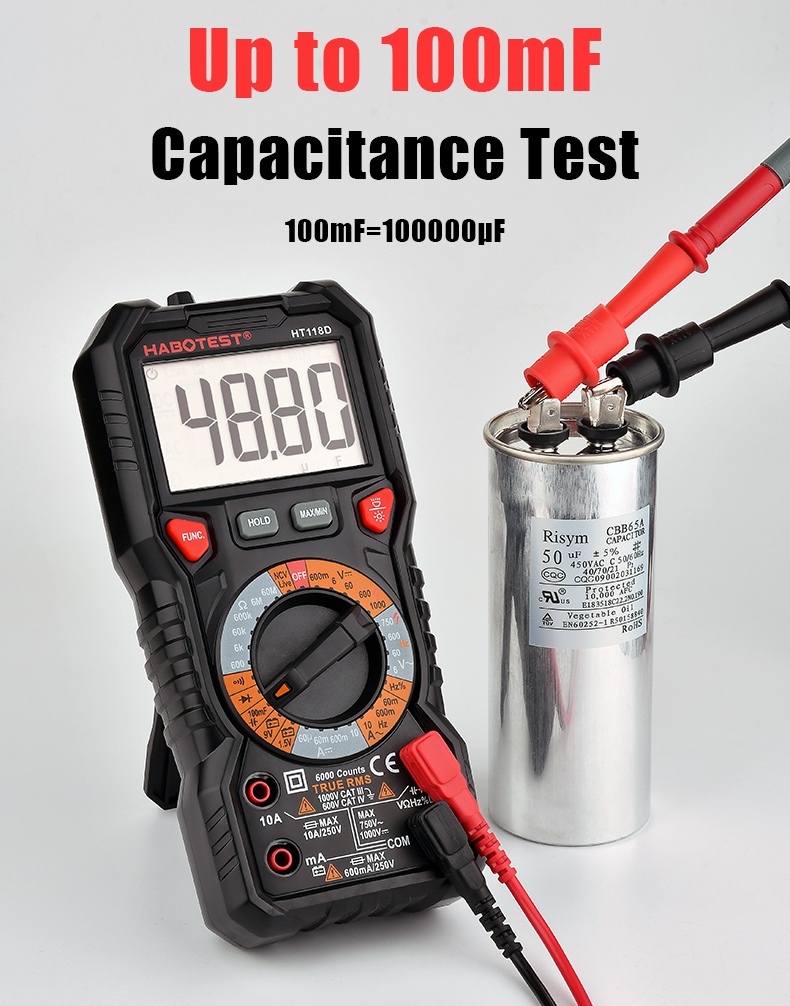

    Capacitance:10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF

    Frequency:10Hz/100Hz/1kHz/10KHz/100kHz/1MHz/10MHz

    Duty

    Live Test

    NCV Detection

    True RMS

    Continuity

    Max/Min Hold

    Bandwidth

    Low battery indication

    Battery Test

    Double Color backlight

    Input jack LED indicate

    Specifications

    Range

    Accuracy

    HT118A

    HT118C

    HT118D

    DC Voltage

    600mV/6V/60V/600V/1000V

    ±(0.5%+3)

    AC Voltage

    600mV

    ±(1.0%+5)

    6V/60V/600V/1000V

    ±(1.0%+5)

    DC Current

    60uA/600mA/600mA

    ±(0.8%+3)

    600uA/6000uA/60mA/600mA

    ±(0.8%+3)

    6A/10A

    ±(1.2%+3)

    AC Current

    600uA/6000uA/60mA/600mA

    ±(1.0%+3)

    60mA/600mA

    ±(1.0%+3)

    6A/10A

    ±(1.0%+3)

    Resistance

    600Ω/6KΩ/600kΩ/6MΩ/60MΩ

    ±(0.8%+3)

    Capacitance

    10nF/100nF/1μF/10μF/100μF/1mF/10mF

    ±(4.0%+3)

    100mF

    ±(5.0%+5)

    Frequency

    10Hz/100Hz/1kHz/10KHz/100kHz/1MHz/10MHz

    ±(1.0%+3)

    Duty

    1%-99%

    ±(1.0%+2)

    Temperature (℃/)

    -40℃~1000℃,-40℉~1832℉

    ±(1.0%+3)

    NO

    Counts

    6000 Counts

    Auto/Manual Range

    Auto

    Manual

    Display

    LCD Dual

    LCD

    Bargraph

    Yes

    No

    Live Test

    Sound and LED alarm

    NCV

    Sound and LED alarm

    Diode Test

    Yes

    Continuity

    Yes

    Max/Min Hold

    Yes

    Data hold

    Yes

    True RMS

    Yes

    Bandwidth

    1kHz

    Battery Test(1.5V/9V)

    No

    Yes

    Low Battery Indication

    Yes

    Auto Power off

    Yes

    Double Color backlight

    Yes

    Input Jack LED Indicate

    Yes

    Work light

    Yes

    Power

    2 x 1.5V AA Battery

    Weight

    Approx.350g

    Size

    188mmX88mmX58mm

    Safety Rating

    EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 1000V,CATIV 600V


    HT118D Habotest 1000V Handheld Digital Multimeter

    HT118D Habotest 1000V Handheld Digital Multimeter

    HT118D Habotest 1000V Handheld Digital Multimeter

    118_06

    118_12

    118_20

    118_22

    HT118D Habotest 1000V Handheld Digital Multimeter

    Our Services

    * Inquiry and sonsulting support * 12 months warranty

    * Online presentation if necessary * Spare parts delivery

    * Company & Factory Visit ( Site or Online) * New product exchange

    * Free Samples (Shipping Cost Excluded) (Term & Conditions Apply)

    Company Information

    Dongguan Habotest Instrument Technology Co.,Ltd is an innovation orientied technology enterprise with an over 20 years R&D team, injection molding, professional production line and assembly capabilities.


    We offering professional and innovative measuring products as Digital Mltimeter, Digital Clamp Meter, Earth Resistane tester, Insulation Tester, Enviromental detector and other testing insturments for the worldwide customers to meet the global market demand, we also provide electronic test tools, measurement solutions and ODM and OEM services to specific customers.


    Habotest now has over hundred various patents and set an independent innovation goal of reaching more than 100 authorized patents each year. After 20 years industry experience in research and development, Habotest standardized its management and quality systems, obtaining ISO9001-2008 and ISO/TS16949, CE, IEC safety standards and introducing financial ERP systems.


    For providing qualified products and superior serivice to all customers, we have been always producing products which meet the industry standards, and creating unique innovative solutions in high-growth fields.

    Habotest is currently developing test meters and instruments in an industry park nearly 5000 square meter facility. With this new facility, Habotest is capable to fully supply product demands from all customers across the world.


    Now our Daily Production is over 10,000 pcs, We are one of the pioneer domestic enterprises who sucessfully in Research, Development and production.

    Our products is widely used in the field from industrial electronic installation, maintenance service to DIY and daily household needs.
