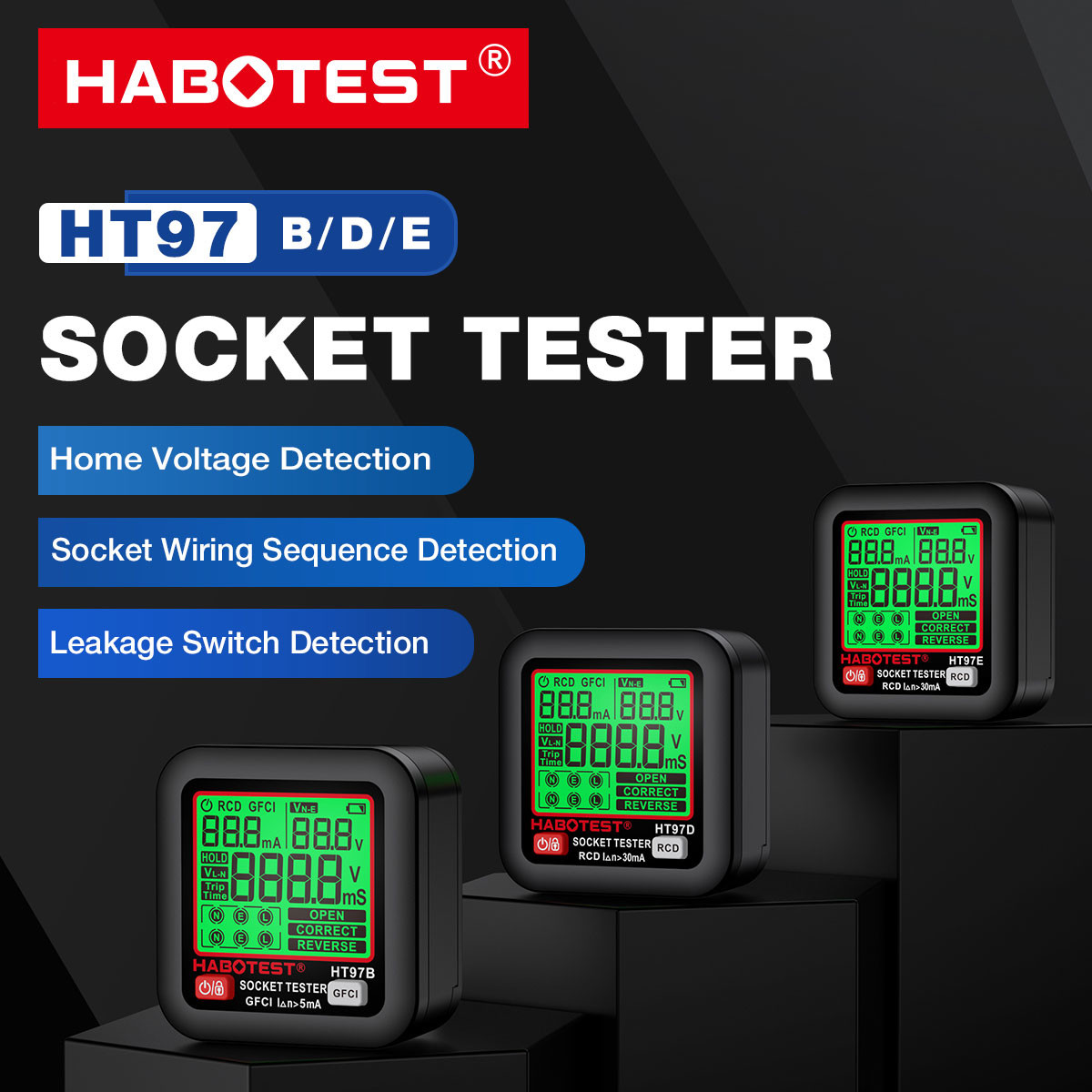

HT97 Digital Socket Tester Smart Voltage Detector RCD GFCI Voltage
Test EU US UK Plug Large Display Socket Tester
Features:
SIMPLE OPERATION: Simply insert the tester into an already powered
three-pin socket. The socket wiring condition and AC voltage can be
easily determined based on the information displayed on the
instrument screen.
SOCKET WIRING SEQUENCE TEST: Insert the tester into a standard
three-pin power socket. If a wiring sequence error is detected, the
orange backlight will illuminate to indicate a wiring error. Refer
to the display to identify the specific type of wiring error.
DATA RETENTION: After inserting into the socket, the data
automatically locks after three seconds. Once locked, press the
unlock button to release the data.
LEAKAGE SWITCH DETECTION: Insert the tester into a three-pin
socket, ensuring that the display indicates correct wiring. Press
and hold the RCD button for more than 2 seconds. In this case, a
functioning residual current device (RCD) should trip, displaying
the ripping time. The button indicator willflash, indicating the
completion of the tripping process. If it does not trip, it
suggests a malfunction in the residual current device.
AUTOMATIC SHUTDOWN: If there is no operation within 5 minutes of
powering on, the instrument will automatically shut down.
PRODUCT SAFETY AND RELIABILITY: Rated safety level CAT II 300V
ensures safe usage and quality assurance.

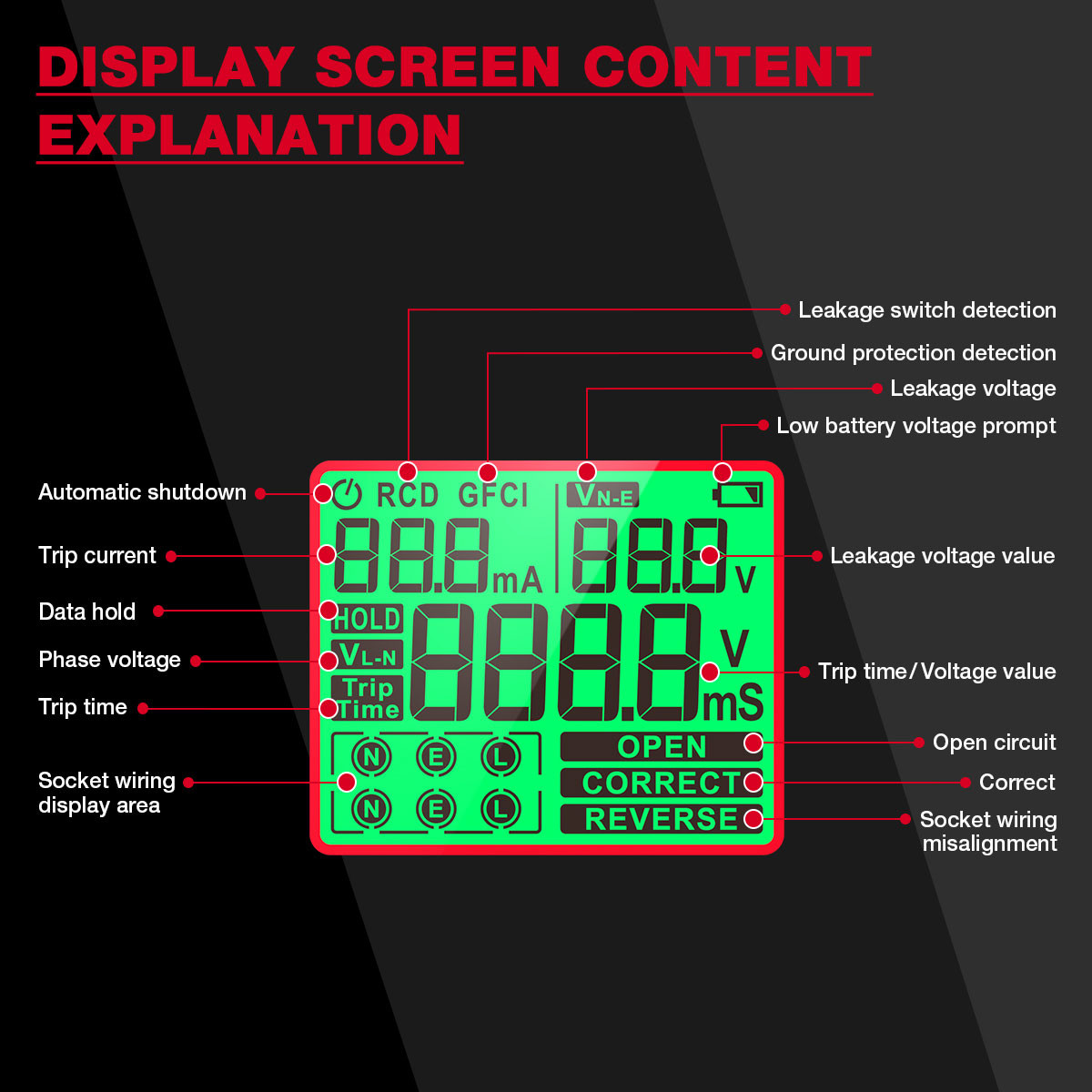

HIGH-DEFINITION BACKLIT LARGE SCREEN: The high-definition backlit
display screen ensures clear visibility of measurement content even
in dimenvironments, providing a clear and easily understandable
view of the test results.
WIDELY APPLICABLE SCENARIOS: Can be used to inspect the safety of
socket wiring in homes, offices, shopping malls, and other places.
Specifications:
Model: HT97B / HT97D / HT97E (Optional)
Plug: US / EU / UK (Optional)
Material: ABS
Voltage Range: AC30~260V/45~65Hz, ±(2.0%+2); AC30~260V/45~65Hz,
±(2.0%+2); AC30~260V/45~65Hz, ±(2.0%+2)
Leakage Voltage Range: 0~99V/45~65Hz, ±(2.0%+2); 0~99V/45~65Hz,
±(2.0%+2); 0~99V/45~65Hz, ±(2.0%+2)
Trip Time Test: 10-1000mS, ±(2.0%+4); 10-1000mS, ±(2.0%+4);
10-1000mS, ±(2.0%+4)
GFCI Test: ＞5mA (HT97B)
RCD Test: ＞30mA (HT97D & HT97E)
Voltage Measurement (48V~250V/45~65Hz): Yes
LCD Display: Yes
Backlight: Yes
Socket Connection Detection:
1. 10-1000mS, ±(2.0%+4)
2. Open ground
3. Open neutral
4. Open live
5. Live wire and ground wire reverse
6. Live wire and neutral wire reverse
7. Live wire and ground wire reverse, missing ground wire
Power Supply: 2 * 1.5V AAA batteries (Not included)
Safety Rating: EN61010-1, -2-030; EN61326-1, CAT II 300V
Item Size: 67 * 65 * 63mm / 2.63 * 2.56 * 2.48in
Item Weight: 103g / 3.63oz
Package Weight: 138g / 4.86oz
Package Size: 7.5 * 7.5 * 8cm / 2.95 * 2.95 * 3.15in
Package List:
1 * Socket Tester
1 * User Manual (English)
